Differenztemperaturregler Warmwasserbereiter Solarpanel Wasserpumpe 2 Sensor-

Name: Differenztemperaturregler Warmwasserbereiter Solarpanel Wasserpumpe 2 Sensor
Brand: Thermomart
Price: 40.8 EUR
Availability: InStock
Rating: 4.74 (19 reviews)

Thermomart

(11235)

Mehr Artikel des Verkäufers

Verkäufer kontaktieren

US $47,99

Ca.EUR 40,80

Artikelzustand:

Neu

Stückzahl:

Mehr als 10 verfügbar64 verkauft

In guter Gesellschaft. 37 Leute beobachten das.

Voll im Trend. Schon 64 verkauft.

Versand:

US $10,99 (ca. EUR 9,34) Standard Shipping from outside US.

Standort: Ontario, Kanada

Lieferung:

Lieferung zwischen Di, 23. Sep und Di, 14. Okt nach 94104 bei heutigem Zahlungseingang

Rücknahme:

Keine Rücknahme.

Zahlungen:

Sicher einkaufen

eBay-Käuferschutz

Geld zurück, wenn etwas mit diesem Artikel nicht stimmt. Mehr erfahreneBay-Käuferschutz - wird in neuem Fenster oder Tab geöffnet

Gratis Rückversand im Inland
Punkte für jeden Kauf und Verkauf
Exklusive Plus-Deals

Mehr erfahren- eBay Plus - wird in neuem Fenster oder Tab geöffnet

Der Verkäufer ist für dieses Angebot verantwortlich.

eBay-Artikelnr.:125256223399

Zuletzt aktualisiert am 16. Apr. 2025 14:45:06 MESZAlle Änderungen ansehenAlle Änderungen ansehen

Artikelmerkmale

Artikelzustand: Neu: Neuer, unbenutzter und unbeschädigter Artikel in nicht geöffneter Originalverpackung (soweit ... Neu: Neuer, unbenutzter und unbeschädigter Artikel in nicht geöffneter Originalverpackung (soweit eine Verpackung vorhanden ist). Die Verpackung sollte der im Einzelhandel entsprechen. Ausnahme: Der Artikel war ursprünglich in einer Nichteinzelhandelsverpackung verpackt, z. B. unbedruckter Karton oder Plastikhülle. Weitere Einzelheiten im Angebot des Verkäufers. Alle Zustandsdefinitionen aufrufenwird in neuem Fenster oder Tab geöffnet

Type: Dual Digital PID Temperature Control

Lots: Available

Brand: Thermomart

MPN: 769675369262

UPC: 769675369279

Artikelbeschreibung des Verkäufers

Rechtliche Informationen des Verkäufers

Ich versichere, dass alle meine Verkaufsaktivitäten in Übereinstimmung mit allen geltenden Gesetzen und Vorschriften der EU erfolgen.

USt-IdNr.: CA nullnull

Info zu diesem Verkäufer

Mitglied seit Nov 2006

Antwortet meist innerhalb 48 Stunden

Angemeldet als gewerblicher Verkäufer

Welcome to my eBay Store. Please add me to your list of favorite sellers and visit often. Thank you for your business.

Shop besuchen Kontakt

Detaillierte Verkäuferbewertungen

Durchschnitt in den letzten 12 Monaten

Genaue Beschreibung

5.0

Angemessene Versandkosten

4.7

Lieferzeit

5.0

Kommunikation

5.0

Auto PartSmart HomeTemperature ControllersTemperature SensorsPyrometer,Thermometer,GaugeRelay SSR ContactorEnclosure BoxPool Spa SaunaBBQ parts

Verkäuferbewertungen (11.673)

Dieser Artikel (12)

Alle Artikel (11.673)

*****- Bewertung vom Käufer.
Letzte 6 Monate
Bestätigter Kauf
I got this to control an exaust fan. I have it set up to run when the inside temp is 4 degrees F over the outside temperature. I installed it in an electrical box that I bought at my local hardware store. It seems to be doing that fine and is managing the garage temp without me just running an exaust fan constantly. I was not able to get the F3 option working with the outputs in series. I wanted to have the fan stop working when the T2 temp dropped to 16C which was mentioned in the instructions.
Antwort von thermomart- Verkäufer thermomart hat auf Bewertung reagiert.- Verkäufer thermomart hat auf Bewertung reagiert.
Thank you for the positive feedback. If you'd like to use the other output based on the reading of T2 sensor, you should connect your fan to out1 (as the differential output) and wire it to out2 in series (to act as a thermostat). To summarize it, When P1=F2 => Out2 acts as a differential output and Out1 acts as a thermostat for T1 (when it's wired in series). When P1=F3 => Out1 acts as a differential output and Out2 acts as a thermostat for T2 (when it's wired in series).
*****- Bewertung vom Käufer.
Letztes Jahr
Bestätigter Kauf
haven't used don't know if it works yet
*****- Bewertung vom Käufer.
Letztes Jahr
Bestätigter Kauf
Good transaction

Alle Bewertungen ansehen

Produktbewertungen & Rezensionen

Mehr erfahren

4.7

19 Produktbewertungen

14 Nutzer bewerten dieses Produkt mit 5 von 5 Sternen
5 Nutzer bewerten dieses Produkt mit 4 von 5 Sternen
0 Nutzer bewerten dieses Produkt mit 3 von 5 Sternen
0 Nutzer bewerten dieses Produkt mit 2 von 5 Sternen
0 Nutzer bewerten dieses Produkt mit 1 von 5 Sternen

Would recommend

Good value

Good quality

Relevanteste Rezensionen

Alle 16 Rezensionen ansehen

von jimhs850p
05. Sep. 2017
Well built small differential controller, works great
This unit works great for running vent fans to cool off a shop or small house by running the vents only when it is cooler outside than it is inside. Will also work for solar water heating systems, but note there is no high limit setting, so in a hot climate you might have problems getting your solar water tank too hot.
Bestätigter Kauf: JaZustand: NeuVerkauft von: thermomart
von jonadei-36
31. Jan. 2020
Functions properly, but not a user-friendly installation to replace a wall-mounted unit.
I purchased this differential controller for my 30 year-old solar domestic hot water heating system. I replaced a defective Goldline GL-30 controller. This new controller has been operational for 3 months now, and is functioning properly. But I do want to mention a few important points. This is an odd little unit. It is not a user-friendly replacement for standard wall-mounted solar controllers. It is not UL listed. It is not designed to be easily wall-mountable. You will have find an enclosure to make it wall-mountable and to meet code. Perhaps a plastic enclosure designed for outside receptacles. Or make one out of wood. I did a jerry-rigged installation by inserting it inside the old GL-30 through a conveniently located removable front panel, after pulling out the old ... I purchased this differential controller for my 30 year-old solar domestic hot water heating system. I replaced a defective Goldline GL-30 controller. This new controller has been operational for 3 months now, and is functioning properly. But I do want to mention a few important points. This is an odd little unit. It is not a user-friendly replacement for standard wall-mounted solar controllers. It is not UL listed. It is not designed to be easily wall-mountable. You will have find an enclosure to make it wall-mountable and to meet code. Perhaps a plastic enclosure designed for outside receptacles. Or make one out of wood. I did a jerry-rigged installation by inserting it inside the old GL-30 through a conveniently located removable front panel, after pulling out the old motherboard. Thus I didn't have make a new enclosure or change the external wiring. The unit comes with a small single sheet (2-sided) of instructions. I had difficulty following them to change the LED temperature readouts from celsius to Fahrenheit, but eventually succeeded. The default settings for the temperature differential for turning the solar loop circulator on and off are similar to the old controller's, so I didn't have to mess with changing them, but you can modify them if you want. The LED display will continually display the bottom tank sensor and solar controller temperatures, cycling between them about every 10 seconds. You don't have to press anything to see them. When the temperature differential is triggered, switching the circulator on, the LED will display the word "working". If you don't mind the trouble of finding a way to install the unit, it certainly is good value, because standard user-friendly wall-mounted solar controllers seem to cost at least 3 times more.
Bestätigter Kauf: JaZustand: NeuVerkauft von: thermomart
von snowman137
23. Jul. 2019
My solar swimming pool controller

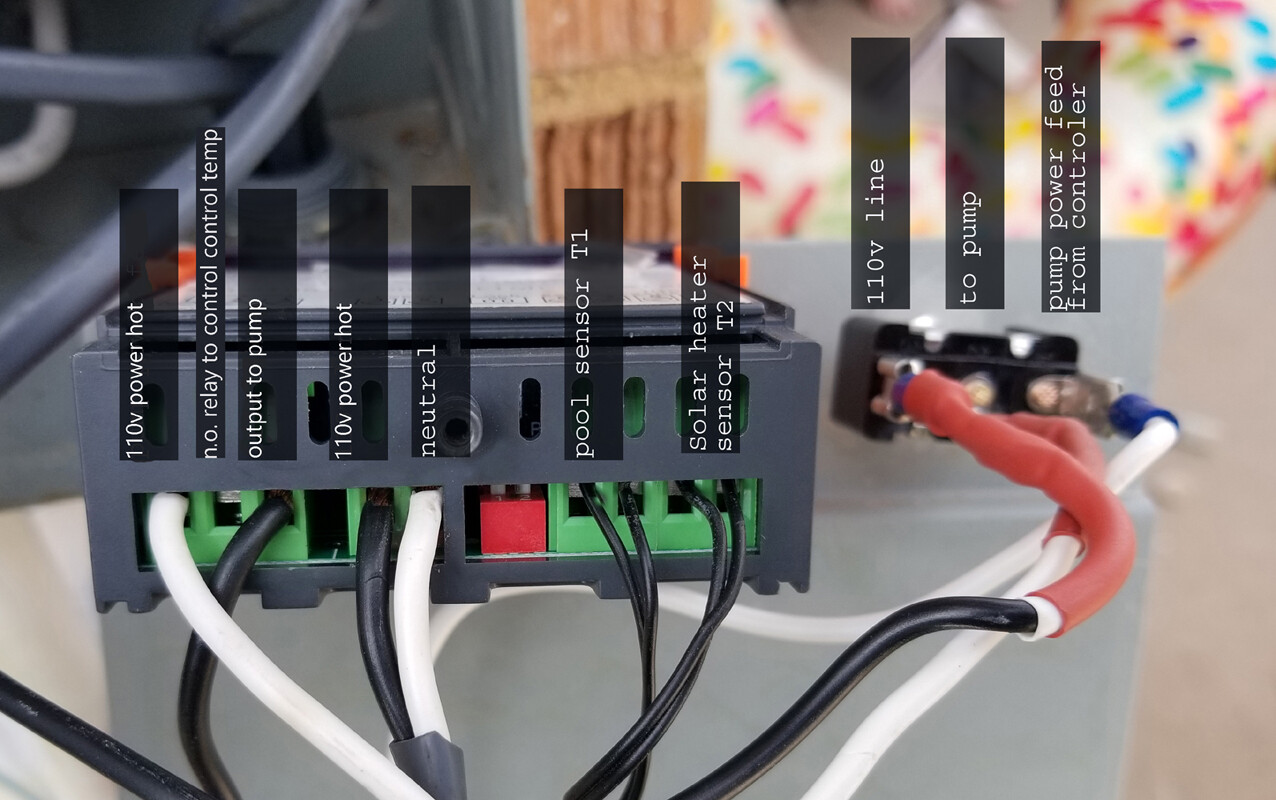

I am using this to control my solar pool heaters. The programming took a little time for me to understand well, but it's easy now. It took heating my pool to 110° a few times before I figured out how it worked and that I needed to add a normally open relay to make it work for my application. I had to put about a 30 foot extension on the temp probe going to the heaters, but easily recalibrated it with the controller. The unit is small and compact, buttons are a little small for my fingers but make solid contact. wire connectors are strong and secure. overall a nice little unit, I would definitely buy it again. p.s. Don't mind the wire colors in the picture, this was taken while I was trying to figure out why my pool was so hot and things got moved around.I am using this to control my solar pool heaters. The programming took a little time for me to understand well, but it's easy now. It took heating my pool to 110° a few times before I figured out how it worked and that I needed to add a normally open relay to make it work for my application. I had to put about a 30 foot extension on the temp probe going to the heaters, but easily recalibrated it with the controller. The unit is small and compact, buttons are a little small for my fingers but make solid contact. wire connectors are strong and secure. overall a nice little unit, I would definitely buy it again. p.s. Don't mind the wire colors in the picture, this was taken while I was trying to figure out why my pool was so hot and things got moved around.
Bestätigter Kauf: JaZustand: NeuVerkauft von: thermomart
von bsteele97
28. Sep. 2020
I love it.. controls heat & cooling in my shop..
I love this little controller. Have you noticed that it is pretty cool at night in the summer, but hot in the daytime? Or, in the winter, it is hot in the attic and cold inside? This little controller solved that issue for me in my shop. In the summer, it compares the indoor temperature against the outdoor.. if it is cooler outdoors, it turns on the attic exhaust fan, pulling cool air from outdoors and exhausting the warm ceiling air into the attic. I also have a switch so I can manually exhaust air if I'm painting or welding. In the winter, I just flip 2 switches. 1 reverses the ceiling fan direction. The other chooses a different pair of 10k NTC thermistor temperature sensors; now comparing the sun-warmed attic temperature with the cooler shop temperature. When the attic is warmer, ... I love this little controller. Have you noticed that it is pretty cool at night in the summer, but hot in the daytime? Or, in the winter, it is hot in the attic and cold inside? This little controller solved that issue for me in my shop. In the summer, it compares the indoor temperature against the outdoor.. if it is cooler outdoors, it turns on the attic exhaust fan, pulling cool air from outdoors and exhausting the warm ceiling air into the attic. I also have a switch so I can manually exhaust air if I'm painting or welding. In the winter, I just flip 2 switches. 1 reverses the ceiling fan direction. The other chooses a different pair of 10k NTC thermistor temperature sensors; now comparing the sun-warmed attic temperature with the cooler shop temperature. When the attic is warmer, the fan blows that warm air downward into the room. My reversible fans are just 2 20" box fans mounted back-to-back. My damper is a center-pivoted piece of rigid foam pulled by an old shaded-pole microwave fan motor mounted like a winch. It all works GREAT!! ... and it uses very little power.
Bestätigter Kauf: JaZustand: NeuVerkauft von: thermomart
von packmaster2001
08. Nov. 2017
Great little controller.
I have a home made 12' x 8' solar hot water panel which has been run by a timer for years . it is set to turn on for 15 minutes every hour from 12:00 to 6;00 pm in the summer and from 12;00 to 4;00pm in winter. can hit 180 degrees in summer and usually 120 degrees in winter. but cloudy and rainy days leave me cold, on rainy days when the pump turns on down comes cold water into my 80 gal. storage tank, unless I pull the plug on the circulating pump. But with this device the pump only turns on when the solar panel water is hotter than the water in the 80 gal. storage tank. For $40.00 and about 2 hrs. of my time for the complete hook including programing the device , my hot water problems have been solved. It works as advertised, has good instructions, and was easy to program. Love this ... I have a home made 12' x 8' solar hot water panel which has been run by a timer for years . it is set to turn on for 15 minutes every hour from 12:00 to 6;00 pm in the summer and from 12;00 to 4;00pm in winter. can hit 180 degrees in summer and usually 120 degrees in winter. but cloudy and rainy days leave me cold, on rainy days when the pump turns on down comes cold water into my 80 gal. storage tank, unless I pull the plug on the circulating pump. But with this device the pump only turns on when the solar panel water is hotter than the water in the 80 gal. storage tank. For $40.00 and about 2 hrs. of my time for the complete hook including programing the device , my hot water problems have been solved. It works as advertised, has good instructions, and was easy to program. Love this little controller.
Bestätigter Kauf: JaZustand: NeuVerkauft von: thermomart
