Verstärker-Teile

Bei dem Bausatz handelt es sich um einen Stereo- Röhrenverstärker in Ultralinearschaltung mit 2x EL84im A-Betrieb. Für den Bausatz werden folgende Röhren benötigt 4x EL84, 2x EF86 und 2x ECC83. · Frequenzgang 20Hz bis 40kHz.

LM1036 HIFI Preamp Tone Board Pre-amplifier Kit. LM1036 HIFI Preamp Tone Board Kits. 1set x LM1036 HIFI Preamp Tone BoardKits. It can adjust the treble and bass frequency effect is very obvious, let amplifier and speakers with more reasonably.

NE5532 OP AMP Preamp Pre-amplifier Board. Using original Texas NE5532 op-amp chip, using the 8-pin IC socket hole, easy to upgrade operational amplifier chip. 1pcs x NE5532 OP AMP Pre-amplifier Board.

Diese digitale TDA8954 Audio-Verstaerkerplatine bietet einen weiten Betriebsspannungsbereich von /- 12,5V bis /- 42,5V. Und es unterstuetzt nicht nur die AC-Stromversorgung, sondern auch die DC-Stromversorgung.

Using LM1036 tones chip, SMD production process, Small size, stable performance. Power input increased the rectifier bridge, can be AC and DC input, when DC input don't need distinguish between positive and negative, easier to use.

LM4610 Preamp Amplifier Tone Board. 1pcs x LM4610 Preamp Amplifier Tone Board. Use the LM7812 and LM7912 regulators. Pre-amplification using the N5532, and with IC Block, easy DIY upgrade IC. Board Size: 167mm x 51mm.

Output power:100W. Power input: Double AC 12-32V,100W. 1pc xTDA7293 Digital Audio Amplifier. Channel type:1.0 mono. Am 09.08.18 hat der Verkäufer die folgenden Angaben hinzugefügt Switch machine mute,over heat protection, short circuit protection.

Als Trafo sind Talema Ringkerntransformatoren der Serie 70050 (15VA) oder 70060 (25VA) verwendbar. PCB Thickness --1.6mm. PCB Color --Green.

Peak current output current does not exceed 2A. Am 05.06.17 hat der Verkäufer die folgenden Angaben hinzugefügt Am 07.03.18 hat der Verkäufer die folgenden Angaben hinzugefügt How to use.

Size: 106 * 46 * 2mm (L*W*TH) LT1083CP (LM317 / LT1086) precision high current adjustable power supply, 2mm thick double-sided gold-plated PCB You can choose LM317 / LM350 / LT1083CP / LT1084CP / LT1085CP / LT1086CP, etc., They can be installed directly on the board. From the regulator performance and power considerations, it is recommended to input AC slightly greater than the required output DC can be. For example, DC9V out, available AC10-12V into (please note that the use of pressure to change the freedom).

Use tube model: 12AX7/ECC83 (this kit does not include tubes). 1 X DIY Tube kit (without tubes). We want you to be happy with our products.And your satisfactory is very important to us.

Lx LM1036 HIFI Preamp Tone Board Kits. Passive preamp tone is preferred. It can adjust the treble and bass frequency effect is very obvious, let amplifier and speakers with more reasonably. This is a mature classic design, New optimization.

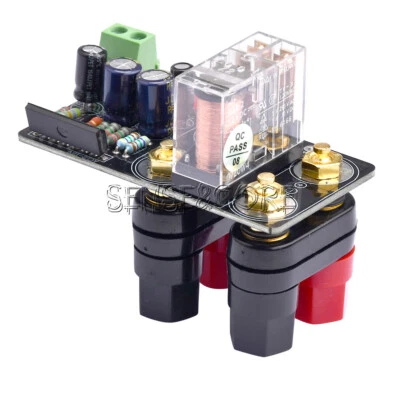

Assembled UPC1237 Dual Channel Stereo Speaker. Core IC: UPC1237 speaker protection integrated IC, OMRON relay. 1pcs x Assembled UPC1237 Stereo Speaker Protection Board. Delay Protection Board AC 12V-18V.

Als Trafo sind Talema Ringkerntransformatoren der Serie 70050 (15VA) oder 70060 (25VA) verwendbar. Leerplatine für ein Universal Linear Netzteil z.B 5V/2A. PCB Thickness --1.6mm. PCB Color --Green.

1pcs x Pre-amplifier Tone Board. And hope to see you soon.

Ersatzteile für Saba Receiver Hifi Center 9920.

Model: PAM8403. 10 PAM8403 Mini Digital Power Amplifier Board. Output power: 2 channels 3W. Am 19.06.18 hat der Verkäufer die folgenden Angaben hinzugefügt Connect the speaker (load) and then powered.

Tube Amplifier 6E2 VU Meter Audio Level Indicator Board 1PC 6E2 tube, Finished Rectifier filter board. Sensitivity can be adjusted. 6E2=EM84=6FG6=EM85E=6E3P(6Е3П)=EM87=6UH6.

Adujustable high voltage and dual low voltage DC regulator circuit board for tube amps: exquisite double-sided FR4 fiberglass board, size 143 × 101mm, high quality Immersion Gold PCB board, thickness 2.0mm. Power high voltage adjustable soft start : just-machine is powered, high voltage from 0V slowly pressed to 300V, so that the tube slowly raised pressure, to avoid the voltage jump mutation impact tube. 2-way filament power supply with a soft start LM317 adjustable voltage regulator circuit, the voltage from 0V to 6.3V slowly pressed or 12.6V, tube filament from the cold low resistance slowly rising, to avoid the impact of the voltage on the filament, to protect the life of the tube. The line ripple coefficient is extremely small, the results are satisfactory for forward-pole.

M2.5 Schrauben und Muttern für Einbaubuchse. M3-Schrauben und Muttern. Sure AA-AB34181 6x100W TDA7498 Class-D Amplifier Board in ein miniI-TX Gehäuse. für 5.1 Endstufe. 230V Einbaubuchse (ohne Micky-Maus Kabel).

50ASX2 BTL. BANG & OLUFSEN. CLASS D SINGLE CHANNEL POWER AMPLIFIER MODULE. - Selectable Mains 85-132V AC & 170-264V AC.

Chip model: TDA7498. Product model: XR-A101. Output power: 100W 2. Product model: audio amplifier board. Output resistance: 4-8Ω. You can follow below process to chontact us. Line type: Class D. Appearance size: 122 76 73MM.

1x Low-pass Filter NE5532 Preamp Board tone board DIT Kits (not assembled). Pass amplifier board to form a bass amplifier boards, ideal for DIY subwoofer, high cost input can be. Audio output: Mono; subwoofer 50Hz-150Hz.

Power Amplifier Chip: Original TDA7498E (TDA7498L is 2X80W chip TDA7498 is 2X100W chip, TDA7498E is 2X160W chip). You can follow below process to chontact us. Am 09.01.18 hat der Verkäufer die folgenden Angaben hinzugefügt.

High power output, as a single-ended amplifier, output 2 x 210W, as a BTL amplifier with BD modulation and low noise. The amplifier uses a new original TDA8954TH chip, which belongs to Class D operation, which is a high-quality analog amplifier and digital amplifier with high efficiency.

1 Digitale Leistungsverstaerkerplatine. Ausgangswiderstand: 4-8 Ohm. Eingangsspannung: AC 12-28V. Ausgangsleistung: 210W 2 (Wenn die Eingangsleistung Dual AC28V, RL = 4Ohm ist, kann die Ausgangsleistung Max sein).

Der Eingang ist mit einer Tiefpassfilterschaltung ausgestattet, um hochfrequente Stoerungen herauszufiltern, die fuer raue Stromversorgungsumgebungen geeignet sind (z. B. Car-Audio-System).

, schnelle Reaktionszeit von etwa 100 ns, ideal für Audio-Schaltungen.

SSM2167 Microphone Preamplifier Board. This preamplifier includes a built-in compression and noise gate, For this function, it is better than just using an op amp in the preamplifier circuit. The noise gate attenuates the signal level below a certain threshold, in order to amplify only the desired signal, such as speech, and reduce the noise in the output signal.

Biete eine Endstufe Monstre nach Hiraga. Bei den Akkus handelt es sich um hochwertige Panasonic-Akkus mit 6AH. Dort habe ich ebenfalls 6AH-Akkus benutzt. Dies verfügt über eine CRCLCRC -Siebung. Die Siebungskapazität beträgt pro Zweig 143000uF.

1 x Audio signal selector board / signal amplifier switching board. Note: The signal selector switch plate screws are 8.8MM. 2mm thick double-sided gold-plated PCB board to ensure the size of the current through the good performance.First-class quality of the PCB.

1x LM3886TF Amplifier HiFi Stereo amp Assembled Board. · VCC = ± 28V OUTPUT = 68W / 4Ω, 38W / 8Ω. · VCC = ± 35V OUTPUT = 50W / 8Ω. If putting the baord into the case, you must make sure the shell of the case connect to the input end of the ground on the board.

Sie koennen jeden Laerm kaum hoeren, ohne eine Verbindung mit Audio-Eingangs. Wenn Sie bereit fuer 5V Versorgungsspannung, kann sie Ausgang 5W 5W Leistung und fahren kleine Lautsprecher direkt (4Ω, 8Ω).

It fits For Various Of Diode Rectifier Filter Plate. High-sided gold-plated PCB. 1x Filter Power PCB. Copper Foil:75U. You will find your favorite products. or negative.

TPA3116 2.1 50WX2 100W Bluetooth Power Amplifier Completed Board. Adopts original TPA3116 and CSR4.0 Bluetooth module. Diese Gebühren sind die Verantwortlichkeit der Käufer. Rated output power: 100W 2 50W.

1x Unbalanced turn balanced / RCA turn XLR / BTL Board. This product uses advanced double-sided thick gold-plated PCB (board 2MM, foil thickness 75U,), LM317 / 337 regulator(used), the new Texas 5532 op amp, hi end capacitors, resistors, the board also with Gold-plated IC sockets, users can easily upgrade the op amp.

1x Verstärkermodul. Justieren Sie das Formular: Lautstärkeregelung. Am 17.05.18 hat der Verkäufer die folgenden Angaben hinzugefügt Einfache Schaltung, gute Klangqualität und weiten Spannungsbereich.

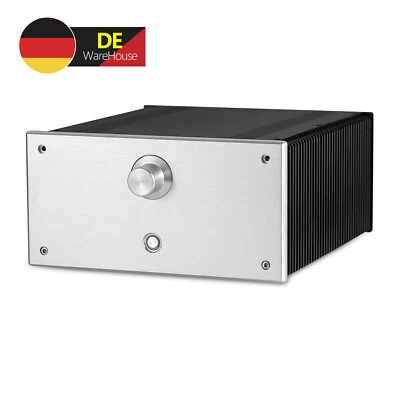

Net Weight (KG) 2.1. Materials Aluminum. Buy It Now. 1× Power socket 4× Rubber feet 1set × Screws 1 × Power switch. Front (mm) Rear (mm) Top (mm). New Listed. Bottom (mm). In order to provide you the best service.

TPA3116 2x50W 100W 2.1 Channel Bluetooth Digital Subwoofer Power Amplifier Board. Amplifier chip: TPA3116. Dual channel 50W 50W power output and 100W subwoofer output. Output power: 50W 50W (stereo) 100W (subwoofer).

Adujustable high voltage and dual low voltage DC regulator circuit board for tube amps: exquisite double-sided FR4 fiberglass board, size 143 × 101mm, high quality Immersion Gold PCB board, thickness 2.0mm. Power high voltage adjustable soft start : just-machine is powered, high voltage from 0V slowly pressed to 300V, so that the tube slowly raised pressure, to avoid the voltage jump mutation impact tube. 2-way filament power supply with a soft start LM317 adjustable voltage regulator circuit, the voltage from 0V to 6.3V slowly pressed or 12.6V, tube filament from the cold low resistance slowly rising, to avoid the impact of the voltage on the filament, to protect the life of the tube. The line ripple coefficient is extremely small, the results are satisfactory for forward-pole.

Feature: Output loading :Need add the Post amplifier Power supply :AC12-0-12v Size :100*57*17mm Net weight :62G Simple directing: Lin GND Rin-----Corresponding to Audio input >Left channel Ground Right channel Lout GND Rout--Corresponding to Audio output>Left channel Ground Right channel MIC1 MIC2-------Connecting the microphone.

1 x TDA7492P Wireless Digital Bluetooth Audio Receiver Amplifier Board. Audio input: stereo input various versions of the Bluetooth connection, using CSR8630 Bluetooth chip, Bluetooth V4.0, high software compatibility.

Symasym5, is a "cute" power amplifier, designed with quality but still low price in mind. This resulted in a ClassAB BJT amplifier, using only TO92 transistors for input and VAS, with a reasonable part count.

Diese Gebühren sind die Verantwortlichkeit der Käufer. Power Consumption: 5W. Input Interface: RCA. This product adopts NE5532 Front chip for better noise performance and good output drive capability.

LM3886TF 68W 68W 4-8Ω Dual-channel. 1set x LM3886TF Power Amplifier BoardDIY Kits. Output Power: Max 68W 68W. Stereo Audio Power Amplifier Board DIY Kits. Sound quality is good, the midpoint is very stable, less than 1MV.

For Preamp Headphone Amplifier Board. Ultra-small landscaping design, military grade FR-4 boards, high-quality components to create a strong voice. 1set x BASS Treble BoosterKits. This is Kits, need welding its by yourself.
