Details zu  Audio Authority 1177A TOSLink/Coaxial Digital Switcher/Switch Automatic SPDIF

Originalangebot aufrufen
Audio Authority 1177A TOSLink/Coaxial Digital Switcher/Switch Automatic SPDIF
Item Ended
20. Nov. 2011 06:01:24 MEZ
US $144,99
Ca. EUR 128,95(einschließlich Versand)
0 Gebote ]
Berechnen Variiert abhängig von Artikelstandort und Versandservice
Richmond, Tx, Vereinigte Staaten von Amerika


Der Verkäufer ist für dieses Angebot verantwortlich.


Artikelzustand: Neu Brand: Audio Authority
Warranty: One Year (standard) Model: 1177A
Authorized Reseller: Yes Packaging: Manufacturer's Box
Audio Authority Logo

Audio Authority 1177A

Electronic switcher for coaxial and optical digital audio sources

The Audio Authority 1177A.

Audio Authority 1177A Digital Audio AutoSelector Switch

Following in the footsteps of the highly respected model 1177, the Audio Authority 1177A brings an all-metal cabinet for improved appearance. This is more than an 1177 in a metal box - the all-new design also offers new circuit board architecture for superior performance.

This high-performance Switcher can expand the digital audio capacity of any audio system. It automatically selects the active audio input and it can convert optical and coaxial signals automatically and transparently so you can connect any combination of optical TOSLink and coaxial digital audio sources.

The switcher outputs both optical and coaxial signals simultaneously, converting seamlessly between the two formats. For example, you can have a satellite receiver connected to input one via TOSLink optical cable and a DVD player connected to input two via coaxial cable. No matter which input is active, the switcher will always output both optical and coaxial formats from that source. Supports all Dolby Digital, DTS, and PCM formats.

Like most Audio Authority products, the Model 1177A comes with a one year limited warranty from the manufacturer.

Audio Authority's Description

4:1 Digital Audio AutoSelector

Model 1177A

This 4x1 AutoSelect switch is a perfect solution when digital audio sources outnumber your system's digital audio inputs. The 1177A features both digital coaxial and digital optical inputs and outputs, and automatically outputs the selected audio source in both formats simultaneously.

Four inputs, one output. Made in the USA.


The 1177A is a unique four input, one output digital audio switcher, incorporating technologies such as AutoSelect automatic input switching and digital audio automatic cross-conversion. This sturdy product is perfect for adding digital audio inputs to a Bose Lifestyle system, or a legacy A/V receiver that has very few digital inputs. Supports both digital optical and digital coaxial audio types.

  • AutoSelect automatic input switching selects active source
  • Four inputs (digital coax and digital optical), one output (digital coax and digital optical)
  • All-metal construction
  • Supports all Dolby Digital, DTS, and PCM formats
  • Made in the USA


Key Features

  • Four inputs (digital coax and digital optical)
  • One digital coax output
  • One digital optical output
  • Automatic digital audio cross-conversion
  • AutoSelectª technology with manual selection override
  • Made in the USA


  • Digital audio (coaxial and optical) - 4/1


Video Parameters

  • N/A

Audio Parameters

  • Input Impedance: 75 ohms
  • Min Load Impedance: 75 ohms
  • Multi-channel Digital: Yes
  • Frequency Response: 10-50KHz


  • Connector Types: RCA (digital coaxial audio), Toslink (digital optical)
  • Dimensions (HxWxD, inches):2.25 x 5.6 x 4.7
  • Shipping Weight: 1.9 lbs.
  • DC Input Connector: 5.5 x 2.1mm
  • DC Input Voltage/Polarity: 12V/Center Positive or Negative
  • Max DC Input Current: 150mA
  • Heat Output: N/A

In the Box

  • Power Supply: Model 571-013
  • User Manual



  • Product Focus Sheet: 1177A (PDF)
  • User Manual: 1177A (PDF)

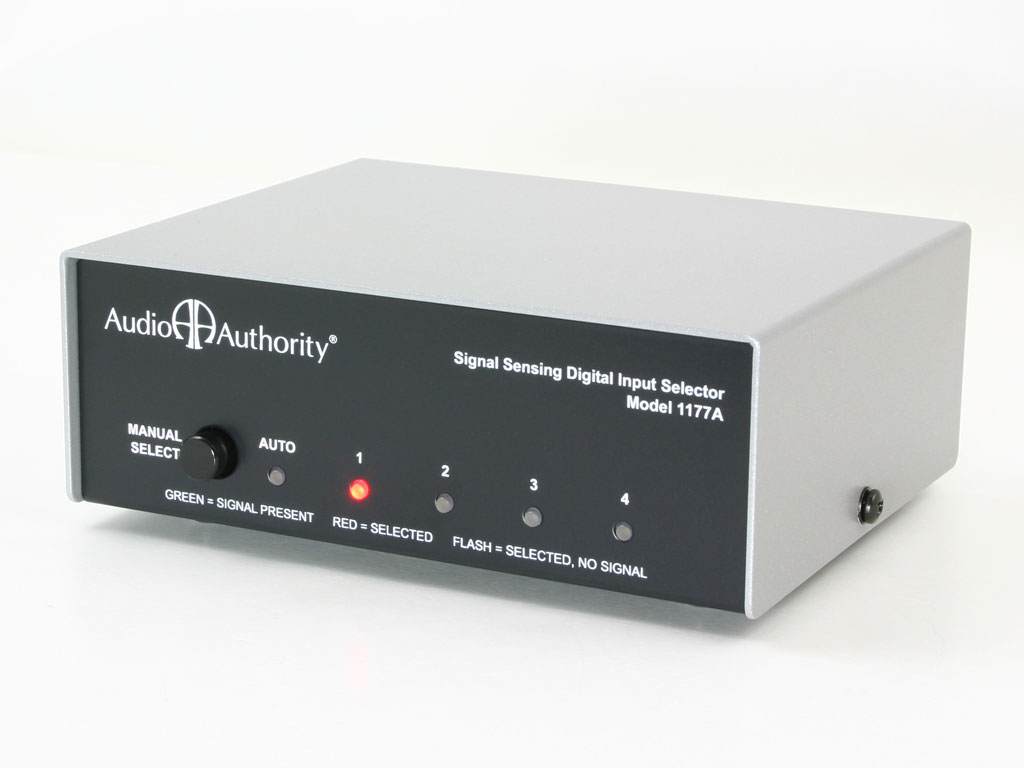

Audio Authority1177A front right view

The front panel has multi-color LEDs to indicate "auto" mode and input selection status, as well as a push-button switch for manual source selection.

Audio Authority 1177A back panel

This picture shows the back panel. If you zoom in, you can see four optical TOSLink digital audio inputs at the upper right, with a corresponding coaxial digital input below each optical input. The output connectors are on the left side. The power input connector is located between the input and the output connectors.

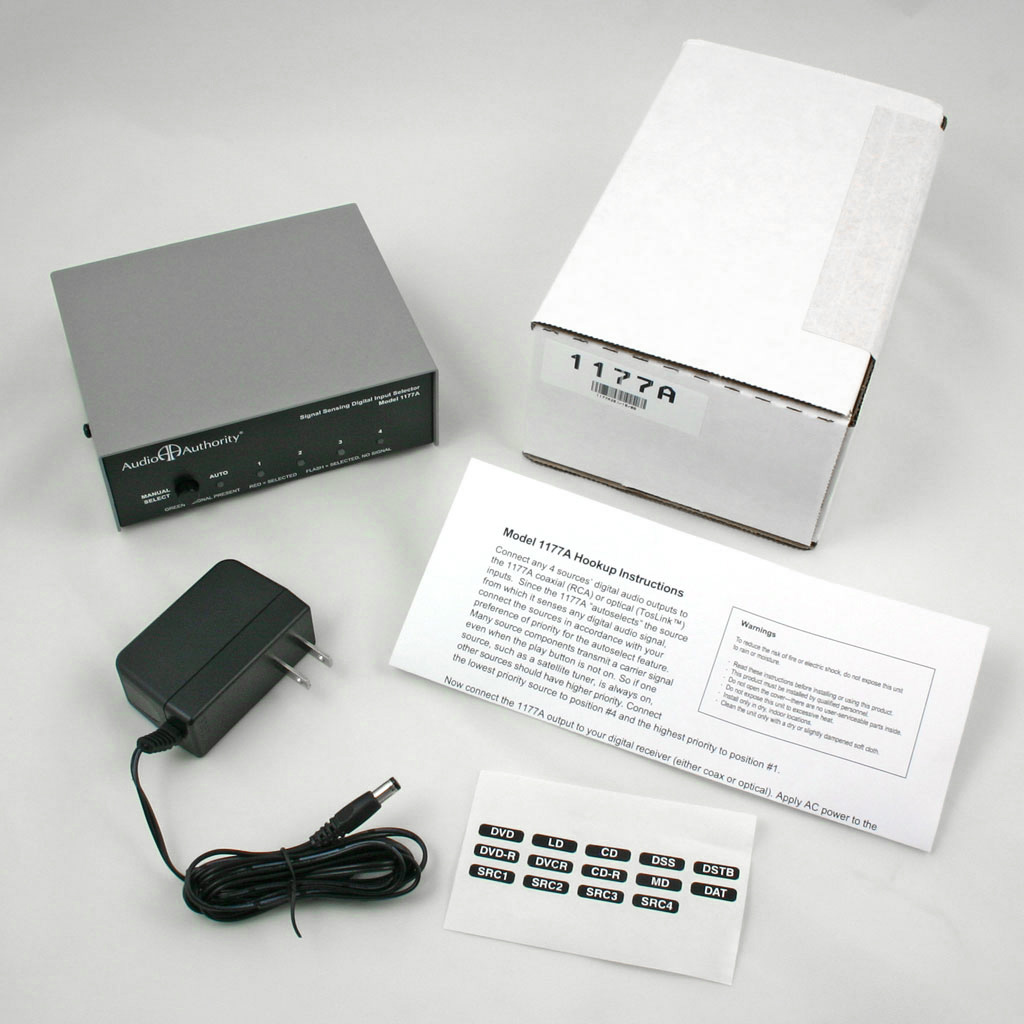

Audio Authority 1177A package contents

Shown here is the product box and the included contents. Starting at the upper right, moving in a clockwise direction, you can see the box, an installation instruction sheet, some adhesive labels, a universal power supply, and the 1177A unit itself.

Audio Authority 1177A universal power supply

Here is a closer look at the included universal power supply. As you can see, this will work with just about any power system. The plug itself is intended for the USA, so if you are in a different country, you will need a passive adapter.

Audio Authority 1177A product focus sheet

Here is the product focus sheet.  Click to download PDF.

Audio Authority 1177A manual

Here is the user manual, in PDF format.

Audio Authority Authorized Reseller Seal

Why Cable Solutions?

  • Cable Solutions is an Authorized Online Reseller of Audio Authority products, so our customers are ensured full warranty protection and technical support.  (Audio Authority provides neither warranty nor technical support for products purchased from unauthorized resellers!)
  • We stock this item locally so that it will be ready for immediate shipment, and no one works harder than we do to get your order shipped out to you fast! On business days, orders that are funded by noon will ship the same day.  Orders funded on weekends or holidays will ship the next business day.
  • Customer service is our first priority.  We do our best to help you find the best solutions for your particular application. We're enthusiasts too, so we know what it's like to wait for cables and accessories that are needed to hook up new gear. We also know how important it is to be able to get a response when you need help, so you'll often find us working long hours in an effort to get you the answers that you need.
  • If you have had enough of outsourced support or worse yet, companies that do not even publish a phone number or a functional email address, we think you will be absolutely delighted that you found our company. We know how important it is to be able to get help when you need it. That's why we have people, right here in Texas, ready to respond to your email or answer your phone call. If English is your language of choice, you will have the simple pleasure of communicating with people who's first language is English. Granted, if you call on the phone, you may detect more than a trace of a Texas accent, but that is to be expected when dealing with a family-owned business run by native Texans. We sincerely hope that you will find our heritage of courtesy, honesty, and an ethical way of doing business to be a refreshing experience.

Design excellence, high quality materials, meticulous workmanship, and superior service...put it all together and you get a superior product. Don't get stuck with bad advice, poor service, slow shipment or an inferior product. If you want the best, here it is.


USA Customers

Our standard shipping method for this item is USPS Priority Mail, an air service that provides one to three day delivery to USA addresses.  This service includes Delivery Confirmation and basic tracking information.

If you need faster delivery and better tracking, we also offer Express Mail, which provides overnight delivery to most (but not all) USA addresses.

For items weighing less than 13 ounces and valued at under $200, we also offer First Class Mail.  Transit times for this economy service are typically a day slower than Priority Mail and no tracking information at all is included.

For items weighing more than 13 ounces, we offer FedEx Ground.  Please click here for transit time to your area.  This service offers the lowest cost for heavier items and includes full tracking information.

Please notice that eBay's shipping calculator does not include FedEx services, but we will actually ship via FedEx at the UPS rates shown by the calculator.  For all FedEx shipments totaling over $200.00, a signature will be required upon delivery.  No exceptions please.

Please refer to the Shipping and payments tab to see actual available services and calculated rates.

International Customers

Our preferred international shipping method is Express Mail International (EMS).

For items under $300 in value, we also offer Priority Mail International.  Cost is somewhat lower, but you need to be aware that this service provides only minimal tracking information.

We insure all international shipments, but you should be aware that the insurance company requires a 45 to 60-day waiting period before a claim can be filed and tracking information can be comforting when packages do not arrive within the expected timeframe.

Please refer to the Shipping and payments tab for calculated rates and transit times to your country.

Keep in mind that these transit time estimates are from the US Postal Service. Circumstances in your country, such as delays at your local customs office, can affect the total transit time to your address.

International customers should be prepared to pay import taxes and/or duties at the time of delivery. In NAFTA member countries, customs duties should be discounted for products that are made in the USA, but taxes may still be collected.  Please be advised that we declare actual contents, value and country of origin for customs and insurance purposes.  No exceptions please.


Manufacturer's Warranty Statement

Should any consumer product manufactured by Audio Authority fail due to defects in materials or workmanship within one year from the date of the original sale to the end-user, Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (Ground service only). A copy of the invoice from an Authorized Reseller showing the item number and date of purchase (proof-of-purchase) must be submitted with the defective unit to constitute a valid in-warranty claim.

Units that fail after the warranty period has expired may be returned to the factory for repair at a nominal charge, if not damaged beyond the point of repair. All freight charges for out-of-warranty returns for repair are the responsibility of the customer. Units returned for repair must have a Return Authorization Number assigned by the factory.

This is a limited warranty and is not applicable for products which, in our opinion, have been damaged (including lightning, water, fire, etc.), altered, abused, misused, or improperly installed. Audio Authority makes no other warranties either expressed or implied, including limitation warranties as to merchantability or fitness for a particular purpose. Additionally, there are no allowances or credits available for service work or installation performed in the field by the end user.

Warranty Assistance

USA Customers

Audio Authority typically does a very fine job of handling warranty issues, but if you prefer to deal with Cable Solutions, we will be pleased to handle the matter for you.

International Customers

Please notice that most of our electronic equipment carries a USA warranty, so all international warranty issues must be handled by Cable Solutions.  This means that you must return the item to Cable Solutions for all warranty repair or replacement issues. You will be responsible for all shipping/handling expenses.

All Customers

Return Merchandise Authorization (RMA) is required for all returns handled by Cable Solutions. Please contact us for authorization and instructions.

Return Policy

Defective Merchandise

Defective merchandise will be repaired or replaced as described above.

Non-defective Merchandise

All non-defective returns are subject to restocking fees.  Here are some examples of the fees:

Un-opened merchandise

All un-opened returns are subject to a 10% (minimum) restocking fee.

Opened merchandise

B-Stock or "open box" electronic devices - 15% (minimum)

New electronic devices - 20% (minimum)

Manufactured cables that are packaged in a reusable container - 15% (minimum)

Manufactured cables that are packaged in a non-reusable container - 20% (minimum)

Shipping/handling fees are not refundable and you will be responsible for all shipping/handling expenses related to the return.  In the case of items with "free shipping", customary shipping/handling fees will be added to your restocking fees.

In order to qualify for the rates shown above, we must receive your return within the first 14 days following the day you receive your order.  In cases where the item is returned incomplete, or in less than perfect condition, we will evaluate the restocking fees on a case by case basis.

Return Merchandise Authorization (RMA) is required for all returns.  Please contact us for authorization and instructions.
