NEW Hi end DAC 24 BIT 192K HZ AK4396 sc

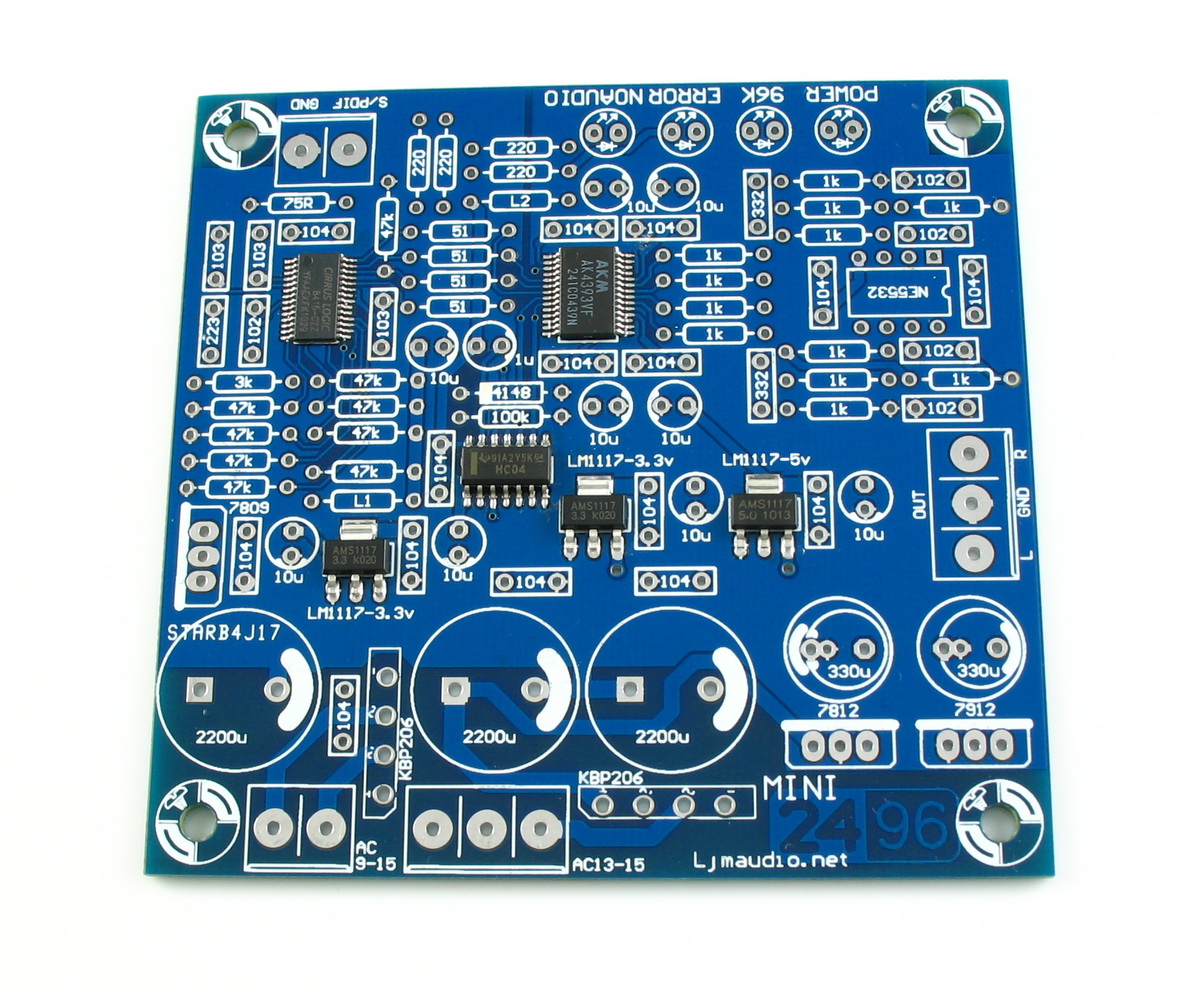

This is a kit,you need to solder it by yourself.
● have a common status indicators:
1. Power indicator
2. 96K coaxial input signal sampling rate will be greater than or equal 88.2K when lit.
3. ERROR, when not locked coaxial signal comes on, usually not connected to the coaxial signal, or coaxial input the wrong signal.
4. NO AUDIO, some of the home players have DVD player can also use this decoder to enhance the DVD player output disc CD player sound quality, while some of the common 2-channel sound track of DVD discs can also be decoded. When the DVD of the coaxial digital signal output to MINI2496 than 2 channel PCM data, when the lamp lights, while MINI2496 into silent mode, no mute function decoder receives the digital signal to DTS or AC3 to lose time digital noise.
● MINI2496 Just use a dual-AC13-15V power supply and a set of AC9-15V single power supply. Can also short the PCB on the back of the two pads, so a dual-AC13-15V power supply can work. Reduces power requirements. Transformer can be greater than 10 watts.
The main parameters
● expansion of the chip with options.
Digital receiver with excellent performance, stable operation of the CS8416. Also opens the jitter function to the chip itself (that is, JITTER elimination), CS8416 SPDIF to the IIS in the completion of the converted signal is passed directly to the IIS core DAC signal conversion chip AK4395.
AKM AK4395 Japanese company produced the best DA converter chip, the company's products to begin with AK in the DIY sector is not as TI BB AD Philips also known, but in an external sound card, professional recording equipment, which is very common. The GINA2496 external sound card such as ECHO, the price of 3K or so, using the AK4393. External sound card RME FF400, innovative EMU0404 are named on the chip using the AKM. Which uses the AK4395 EMU0404 to this model.
As AK4393 AK4394 AK4395 AK4396 models are compatible with each other, so MINI2496 also has a high playability. After AK-chip analog signal and then convert them into the NE5532 dual op amp such commonly used form of the LPF circuit is equipped with high-quality IC socket Seiko Mausoleum, you can easily replace such OP275 OPA2604 LM4562 op amp such as changes in taste.
● Simple, but not diminished the power program, the digital part of the use of a low ripple voltage level 2, using 78 79 amplifier consisting of a regulator sound more lively. At the same time on the CS8416 DAC chip and use their own patch VD VA 1117 power supply with separate supply, digital power supply with two chips are separated beads and so on, while next to each active device has a separate decoupling capacitors .
If you want to buy this transformer.pay me more 39USD.It can work at 110V or 220V

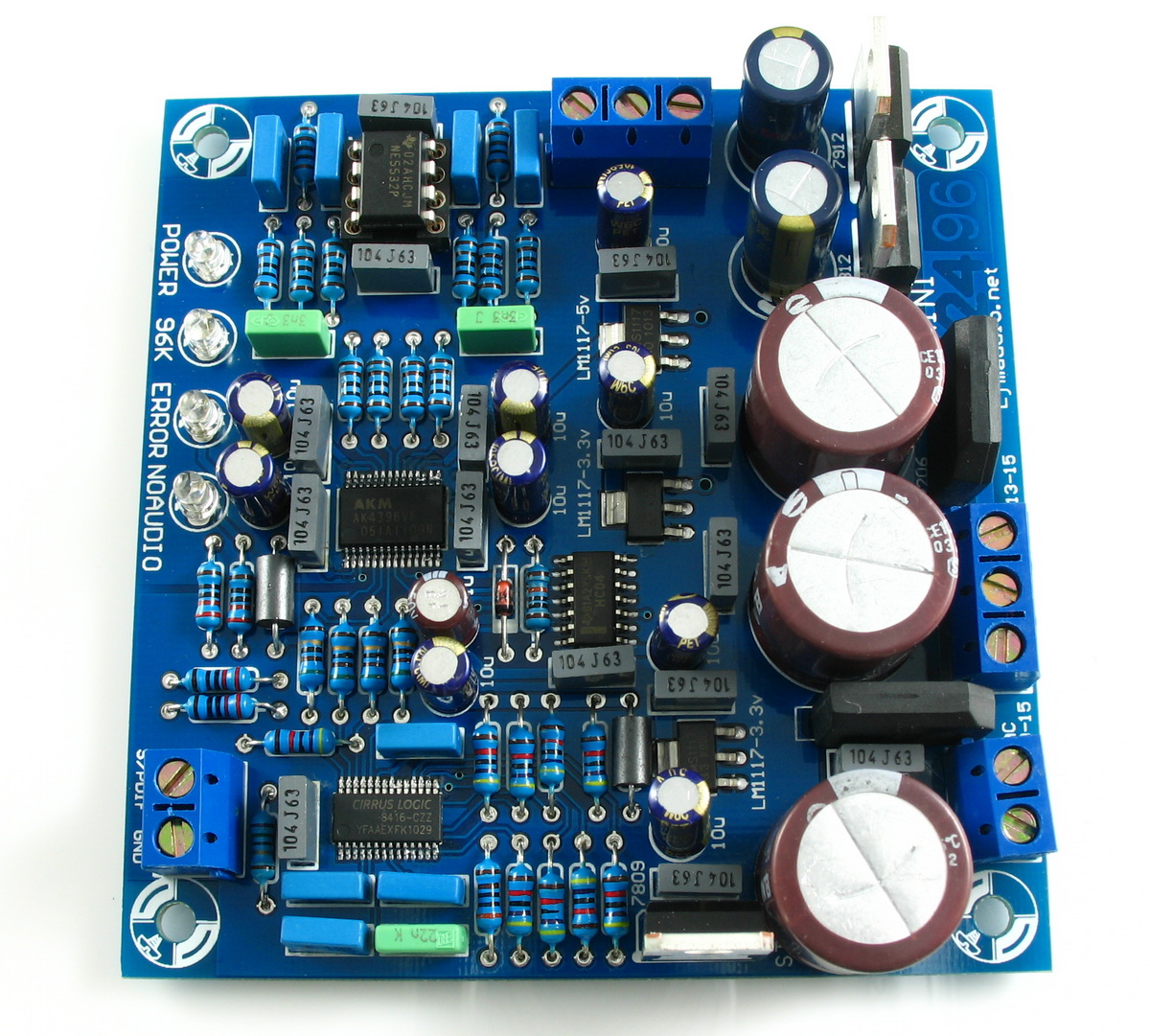

Chip solution: CS8416 + AK4396 + NE5532P
Size: about 80mm * 80mm
DAC AK4396 performance indicators:
The AK4396 is a high performance stereo DAC for the 192kHz sampling mode of DVD-Audio including a
24bit digital filter. Using AKM's multi bit architecture for its modulator the AK4396 delivers a wide dynamic
range while preserving linearity for improved THD + N performance. The AK4396 has full differential SCF
outputs, removing the need for AC coupling capacitors and increasing performance for systems with
excessive clock jitter. The AK4396 accepts 192kHz PCM data and 1-bit DSD data, ideal for a wide range
of applications including DVD-Audio and SACD. The AK4396 has a fully functional compatibility with the
AK4393/4/5 and lower power dissipation.
• 128x Oversampling
• Sampling Rate: 30kHz ~ 216kHz
• 24Bit 8x Digital Filter (Slow-roll-off option)
Ripple: ± 0.005dB, Attenuation: 75dB
• High Tolerance to Clock Jitter
• Low Distortion Differential Output
• DSD data input available
• Digital de-emphasis for 32, 44.1, 48kHz sampling
• Soft Mute
• Digital Attenuator (Linear 256 steps)
• THD + N:-100dB
• DR, S / N: 120dB
• I / F format: MSB justified, 16/20/24bit LSB justified, I2S
• Master Clock: Normal Speed: 256fs, 384fs, 512fs, 768fs or 1152fs
Power: Dual 13-15V + Single 9-15V or dual 13-15V only

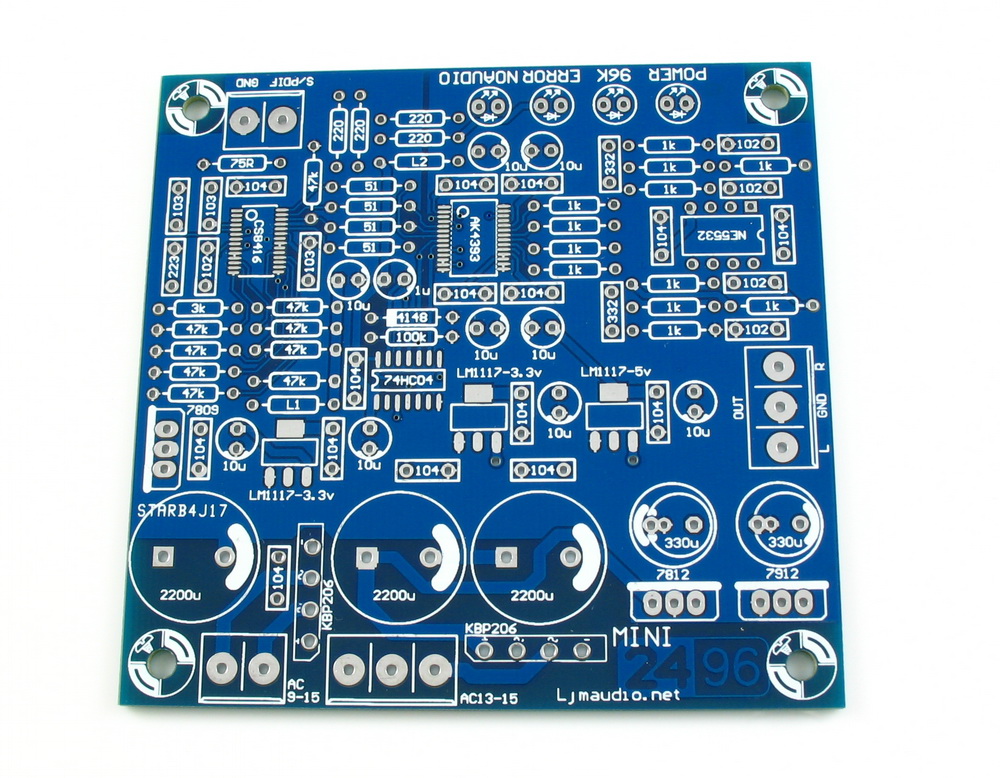

Package contains all the parts diagram, including the PCB, for the parts. After the purchase it necessary to weld
